SEW-Taiwan

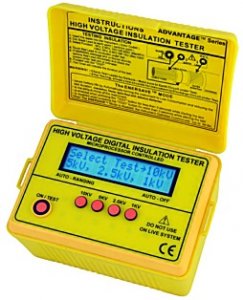

Sew 2804 IN (Ranges: 1kV, 2.5kV, 5kV, 10kV)

FEATURES
● Microprocessor-controlled.
● Four insulation test voltages.
● Insulation resistance; auto ranging on all ranges.
● Bargraph indicates test voltage; rise and decay can be observed
   during tests.
● Visual and audible warning if external voltage is present.
● EnerSave™ feature to extend battery life.
● 2 Lines × 16 characters large LCD.
● Low battery consumption.
● Low battery indicator.
● Overload protection.
● Auto-off.
● Show test time duration (up to 99.9s) for easy comparison.
● EEPROM calibration.
● Built-in carry case and test leads in separate pouch.

  SPECIFICATIONS

Test voltage (DC V) 1kV   /   2.5kV     /     5kV     /   10kV
Measuring ranges
(Auto-Ranges)
0-50GΩ / 0-125GΩ / 0-250GΩ / 0-500GΩ
Accuracy 0-50GΩ : ±3% rdg
50-500GΩ : ±5% rdg
Dimensions 170(L) × 120(W) × 95(D)mm
Weight
(battery included)
Approx. 1030g
Power source 1.5V(AA) × 8
Safety standard EN 61010-1
EN 61326-1
