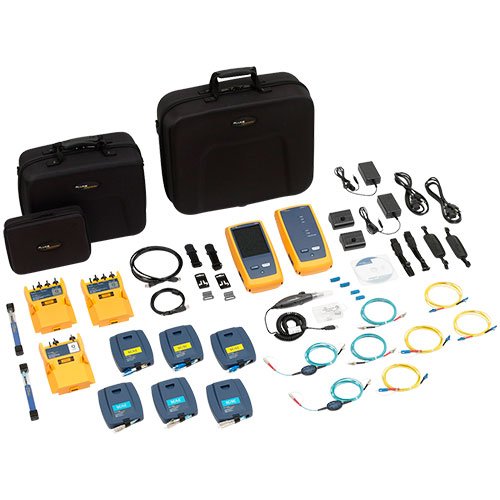

The Fluke Networks OFP-CFP-QI OptiFiber Pro and CertiFiber Pro Quad Kit with Inspection improves the efficiency of fiber certification with a 3 seconds, two fibers at both wavelengths. The Taptive user interface simplifies set-up, eliminates errors and speeds troubleshooting. A set reference wizard ensures correct reference setting and eliminates negative loss errors. Built on the future-ready Versiv platform, CertiFiber Pro provides merged Tier 1 (Basic) / Tier 2 (Extended) testing and reporting when paired with OptiFiber Pro module. Copper certification and Wi-Fi Analysis and Ethernet troubleshooting modules are also available. Analyze test results and create professional test reports using LinkWare Management Software.
The Fluke Networks OFP-CFP-QI OptiFiber Pro and CertiFiber Pro Quad Kit with Inspection helps cabling professionals accomplish more than ever. It's all about accurate, error-free certification, making jobs easier to manage and certifying fiber optic cabling to industry standards, faster. Fluke Networks OFP-CFP-QI complies with all applicable cabling standards, which call out the new Encircled Flux launch condition requirements for optical sources. It's not just for the expert technicians and Project Managers. Individuals of various skill levels can improve the set-up, operation, test reporting, and simultaneously manage diverse projects.
Specifications | ||
Power Meter Specifications | ||
Input Connector | Interchangeable connector adapter (LC standard, SC, ST and FC optional) | |
Detector Type | InGaAs | |
Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm | |
Power Measurement Range | 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths) | |
Power Measurement Uncertainty | < +/- 5% +/- 32 pW | |
Measurement Linearity | < ± 0.1 dB | |
Re-calibration Period | 1 year | |
Power Meter Specifications | ||
Testing Speeds (excludes referencing times) | Smart Remote mode | < 3 seconds (2 wavelengths, one direction, auto wavelength detection) |
Far End Source mode | ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) | |
Loopback mode | ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) | |
Input/Output Connectors | Interchangeable connector adapter (LC standard, SC, ST and FC optional) | |
Launch Condition | Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 | |
Fiber Types Tested | 125 µm or 62.5/125 µm | |
Source Type and Wavelengths | LED source 850 nm ± 30 nm 1300 nm ± 20 nm | |
Maximum Length Measurement | 12 km | |
Length Measurement Accuracy | ± 1.5 m plus ± 1 % of length | |
Output Power (Nominal) | ≥ -24 dBm with EF-TRC | |
Output Power Stability | ± 0.05 dB over 8 hours ± 0.03 dB over 15 minutes | |
Source Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm | |
Power Measurement Range | 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths) | |
Power Measurement Uncertainty | < +/- 5% +/- 32 pW | |
Measurement Linearity | < ± 0.1 dB | |
Re-calibration Period | 1 year | |
Visual Fault Locator (VFL) | ||
Output Power | >-5 dBm <0 dBm SMF-28 singlemode fiber Continuous wave SC/UPC connector |
|
Operating Wavelength | 650 nm nominal | |
Output Modes | Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency) |
|
Connector Adapter | 2.5 mm universal | |
Laser Safety | Class II CDRH Over operating temperature range |
