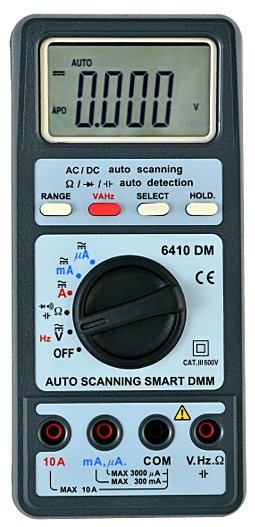

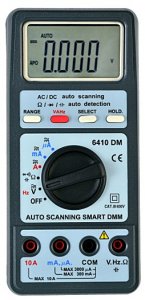

● 3000 counts with a maximum display of 2999. ● Angled display design helps the user to identify the reading of value easier. ● Auto scanning function for AC/DC voltage, and current. ● Auto ranging. ● Range change function. ● Continuity check. ● Diode & Capacitance measurement. ● Data hold function. ● Low battery indication. ● Over range indication. ● Fuse protection. ● Special hook design used to hang the meter for ease of use.
SPECIFICATIONS
DC Voltage
Ranges
Resolution
Accuracy
Input protection
300.0mV
100μV
±(0.5%rdg+3dgt)
1000V DC
3.000V
1mV
30.00V
10mV
300.0V
100mV
1000V
1V
․Input impedance : 10MΩ
AC Voltage
Ranges
Resolution
Accuracy
Input protection
300.0mV
100μV
±(1%rdg+5dgt)
800V AC
3.000V
1mV
30.00V
10mV
300.0V
100mV
750V
1V
․Input impedance : 10MΩ
DC Current
Ranges
Resolution
Accuracy
Input protection
300.0μA
0.1μA
±(1%rdg+5dgt)
500mA
3000μA
1μA
30.00mA
0.01mA
300.0mA
0.1mA
10A
10mA
±(2%rdg+3dgt)
12.5A
․Overload Protection 0.5A/250V fast blow fuse for 300mA 12.5A/500V fast blow fuse for 10A
AC Current
Ranges
Resolution
Accuracy
Input protection
300.0μA
0.1μA
±(1%rdg+5dgt)
500mA
3000μA
1μA
30.00mA
0.01mA
300.0mA
0.1mA
10A
10mA
±(2%rdg+3dgt)
12.5A
․Overload Protection 0.5A/250V fast blow fuse for 300mA 12.5A/500V fast blow fuse for 10A
