FEATURES

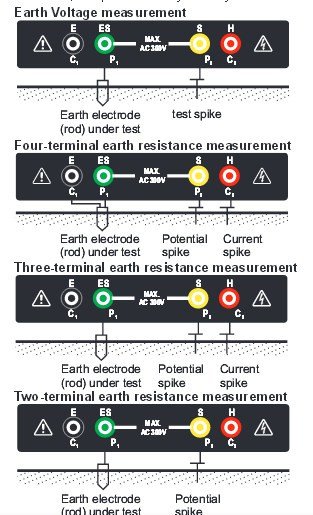

● Microprocesser-controlled. ● Earth testing at 2Ω, 20Ω, 200Ω, 2000Ω. ● Earth voltage measuring : 0-300V AC. ● Automatic C spike check. ● Automatic P spike check. ● 2-Wire test. ● 3-Wire test. ● 4-Wire test. ● LCM display. ● Auto ranging. ● Auto power OFF. ● Data hold. ● Robust, compact and easy-to-carry.

SPECIFICATIONS

Measuring ranges : Earth Resistance     0-2Ω / 0-20Ω / 0-200Ω / 0-2000Ω     Earth Voltage     0-300V AC Accuracy : Earth Resistance ±2%rdg ± 3dgt     Earth Voltage ±2%rdg ± 3dgt Earth resistance     resolution : 0-2Ω : 0.01Ω     0-20Ω : 0.1Ω     0-200Ω : 1Ω     0-2000Ω : 10Ω       Temperature     & humidity : Operating 0°C~40°C ≤80% R. H.     Storage : -10°C~50°C ≤80% R. H. Dimensions : 250(L) x 190(W) x 110(D)mm Weight     (battery included) : Approx. 1430g Power source : 1.5V (AA) x 8 Safety standards : EN 61010-1 CAT IV 300V     EN 61557-1 EN 61557-5     EN 61326-1
